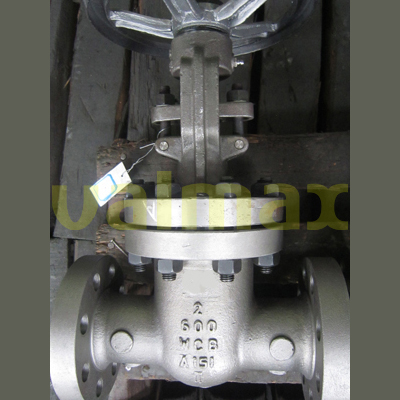

Gate Valve, 600 LB, 2 Inch, RF, Flange End, Rising Stem

Valmax > Valves > Gate Valves > Gate Valve, 600 LB, 2 Inch, RF, Flange End, Rising Stem
Gate Valve, 600 LB, 2 Inch, RF, Flange End, Rising Stem
Short Description
 Model No.: VM 13 GV 12    Clicks: 4060
China Gate Valve manufacturer Valmax supplies Gate Valve, featured with 292 mm Face to Face dimension, API 600 Valve standard, ASME B16.5 Flange standard.
Request a quoteShare
Keywords: Gate Valves .
Previous: Gate Valve, 150 LB, 18 Inch, RF, OS&Y, ASME/ANSI B16.5
Next: Gate Valve, ASME B16.34, GB12234, API 600, ASME B16.5

Gate Valve, 600 LB, 2 Inch, RF, Flange End, Rising Stem Key Specifications / Features

Body/Bonnet: ASTM A216 WCB.
Wedge: ASTM A216 WCB+316SS.
Seat: ASTM A105+316SS.
Stem: 316SS.
Face to face dimension: 292 mm.
Valve standard: API 600.
Flange standard: ASME/ANSI B16.5.
Sealing pressure test: 113 BAR.
Shell pressure test: 154 BAR.
