IP65 Multi-turn Gear Actuator, motor flange Key Specifications / Features

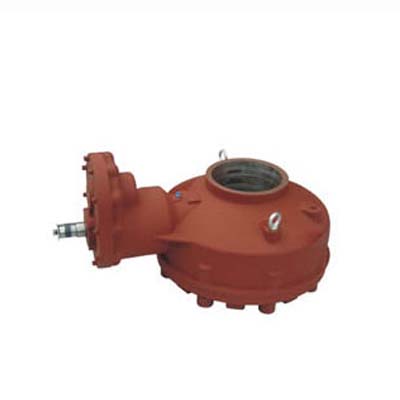

The gear actuator can be installed directly on the gate valve,globe valve and so on .By using Spiral bevel gears and thrust ball bearing, the gear actuator can run smoothly,and have high output torque,low noise and high efficience. It can avoid water & oil leakage as sealing glands are used at all the part passed. And the Protection grade can be IP65. The handwheel and the stem covers can be customized. For different valves and requirements, there are single stair gear actuator with motor flange,double stair gear actuator with motor flange and double stair gear actuator with handwheel etc.

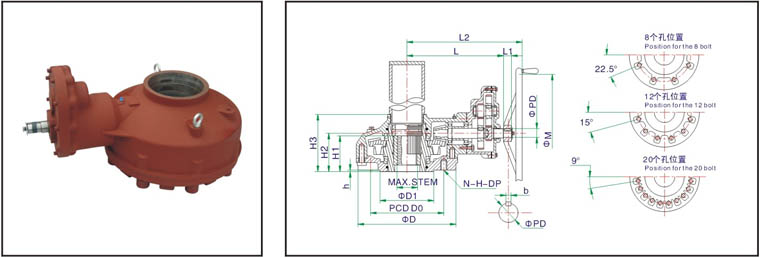

ip65-multi-turn-gear-actuator-motor-flange-drawing
型号Model MY-V2-1S MY-V3-1S MY-V35-1S MY-V5-1S MY-V6-1S MY-V7-1S MY-V8-1S
技术参数Tachnical—parameters
 速比Ratio 12.2:1 18.1:1 23:1 42:1 46:1 94.4:1 115.5:1
 最大推力
 Max-thrust
N 190000 280000 352000 512000 1110000 1310000 1430000
Kgf 19400 29400 35900 52200 113000 133000 146000
 最大转矩
 Max-torque
N·m 2500 3500 5000 8200 14500 18600 26100
Kgf·m 255 357 510 836 1479 1897 2662
 最大阀杆直径
 Max-stem dia.Mm
52 60 70 100 120 130 150
 参考重量Weight Kg 52 70 119 265 328 470 645
连接尺寸Connect ion-size
 法兰号FLANGE (F20) F25 F30 F35 F40 F48 F60
 法兰外圆(D) 250 300 350 415 475 560 686
 连接孔中心 D0 205 254 298 356 406 483 603
 PCD N-H-DP 8-M16-24 8-M16-24 8-M20-35 8-M30-45 8-M36-54 12-M36-54 20-M36-54
 凸面Convex(D1×h) 140 × 5 200 × 5 2300 ×5 260 × 5 300 × 8 370 ×8 470 ×8
外型尺寸Appearance-size
    H1 75 85 105 145 165 195 200
    H2 90 100 140 155 210 220 250
    H3 160 170 225 280 335 360 380
    L 305 330 390 480 500 550 610
    L2 445 470 550 655 678 750 810
手轮
hand wheel
PD 28 28 28 38 38 45 45
(b)key 8 × 7 8 × 7 8 × 7 10 × 8 10 × 8 1 2 × 8 12 × 8
L1 40 40 40 50 50 50 50
M 400 500 600 650 700 800 800
