Multi-turn Gear Actuator, IP65

Valmax > Valves > Valve Parts > Multi-turn Gear Actuator, IP65

Short Description

Model No.: VM 13 VP 08 Clicks: 3158

China Gear Actuator manufacturer Valmax supplies Gear Actuator which can avoid water & oil leakage, featured with IP65 Protection grade.

Request a quote Share

Keywords: Actuator , Valve Actuators .

Previous: Multi-turn Gear Actuator, Motor Flange, IP65
Next: IP65 Multi-turn Gear Actuator, motor flange

Multi-turn Gear Actuator, IP65 Key Specifications / Features

The gear actuator can be installed directly on the gate valve, globe valve and so on. By using Spiral bevel gears and thrust ball bearing, the gear actuator can run smoothly, and have high output torque, low noise and high efficience. It can avoid water & oil leakage as sealing glands are used at all the part passed. And the Protection grade can be IP65. The handwheel and the stem covers can be customized. For different valves and requirements, there are single stair gear actuator with motor flange, double stair gear actuator with motor flange and double stair gear actuator with handwheel etc.

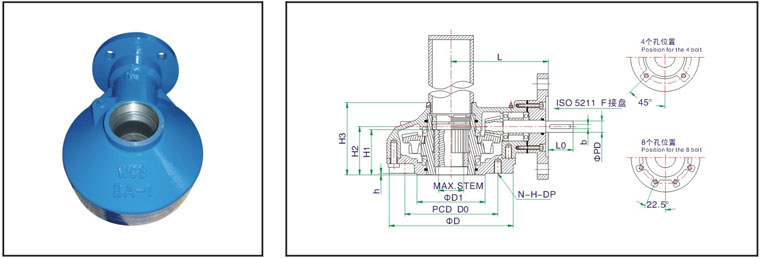

Multi-turn Gear Actuator IP65 Drawing

型号Model

MY-VS10

MY-VS20

MY-V0

MY-V1

MY-V2

MY-V3

MY-V35

MY-V5

MY-V6

技术参数Tachnical-parameters

　速比Ratio

2.3:1

2.35:1

3.1:1

3.6:1

4:1

4.1:1

5:1

6.3;1

7.1:1

　最大推力

75500

113000

127000

141000

190000

288000

352000

521000

1110000

　Max-thrust

Kgf

7690

11500

12900

14400

19400

29400

35900

52200

113000

　最大转矩

N·m

216

363

589

932

1491

2296

3404

8500

12500

　Max-torque

Kgf·m

152

234

347

459

740

　最大阀杆直径
Max-stem dia.Mm

100

120

　参考重量Weight Kg

21.5

95.5

190

288

连接尺寸Connect ion-size

　法兰号FLANGE

F10

F12

F14

F16

F(20)

F25

F30

F35

F40

　法兰外圆(D)

125

150

175

210

250

300

350

415

475

　连接孔中心
　PCD

102

125

140

165

205

254

298

356

406

N-H-DP

4-M10-15

4-M12-18

4-M16-24

8-M20-30

8-M16-24

8-M20-30

8-M30-45

8-M36-54

　凸面Convex(D1×h)

70 × 3

85 ×3

100 ×4

130 × 4

140 × 5

200 × 5

230 ×5

260 ×5

300 × 8

　与电装连接　And electrical equipment connectedPD×b(key)

PDB×(key)

30 × 8

35 × 10

40 × 12

45 × 14

50 × 14

外型尺寸Appearance-size

105

145

165

100

140

155

210

110

125

128

145

160

170

225

280

335

160

175

200

220

240

265

320

395

405

伞齿轮与电装组合参数Bevel gear combination of parameters and electrical equipmen
电装参数Denso Parameters	型号Model	IK5210	IK5215	IK5220	IK5230	IK5345	IK5360	IK5490	IK5412	IK5518
	力矩Torque Nm	100	150	200	300	450	600	900	1200	1800
	转速Speed r/min	18/24	18/24	18/24	18/24	24/48	24/48	24/48	18/24	24/36
	接盘GB/T12222-2005	F10	F10	F14	F14	F16	F16	F25	F25	F30
伞齿轮参数	输出力矩Torque Nm	185	285	480	864	1450	1920	3600	6050	10200
