Gate valve, 150 LB, 48 Inch, RF, Flange End, OS&Y, 13CR

Valmax > Valves > Gate Valves > Gate valve, 150 LB, 48 Inch, RF, Flange End, OS&Y, 13CR

Short Description

Model No.: VM 13 GV 03 Clicks: 3913

China Gate Valve manufacturer Valmax supplies Gate Valve, Wedge made of ASTM A216 WCB+13CR, stem made by 13CR, featured with 863 mm Face to Face dimension.

Request a quote Share

Keywords: Gate Valves .

Next: Gate Valve, 150 LB, 16 Inch, Flange End, Bypass Type

Gate valve, 150 LB, 48 Inch, RF, Flange End, OS&Y, 13CR Key Specifications / Features

Body/Bonnet: ASTM A216 WCB.

Wedge: ASTM A216 WCB+13CR.

Seat: ASTM A105+13CR.

Stem: 13CR.

Face to Face dimension: 863 mm.

Valve standard: API 600.

RF standard: ASME/ANSI B16.5.

Sealing pressure test: 22 BAR.

Shell pressure test: 30 BAR.

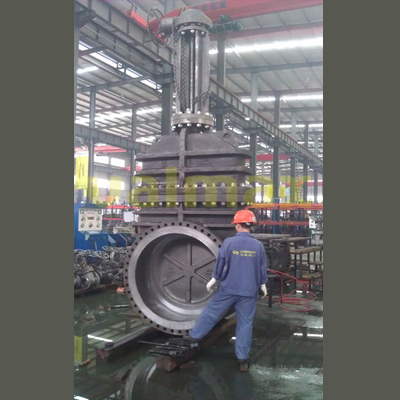

Gate valve, 150 LB, 48 Inch, RF, Flange End, OS&Y, 13CR

Gate valve, 150 LB, 48 Inch, RF, Flange End, OS&Y, 13CR Key Specifications / Features
